Levelling head

Professionally designed for maximum stability and precision when setting up measuring or scanning devices. Ideal for use in surveying, metrology, photogrammetry and research laboratories.

Ask for a quote

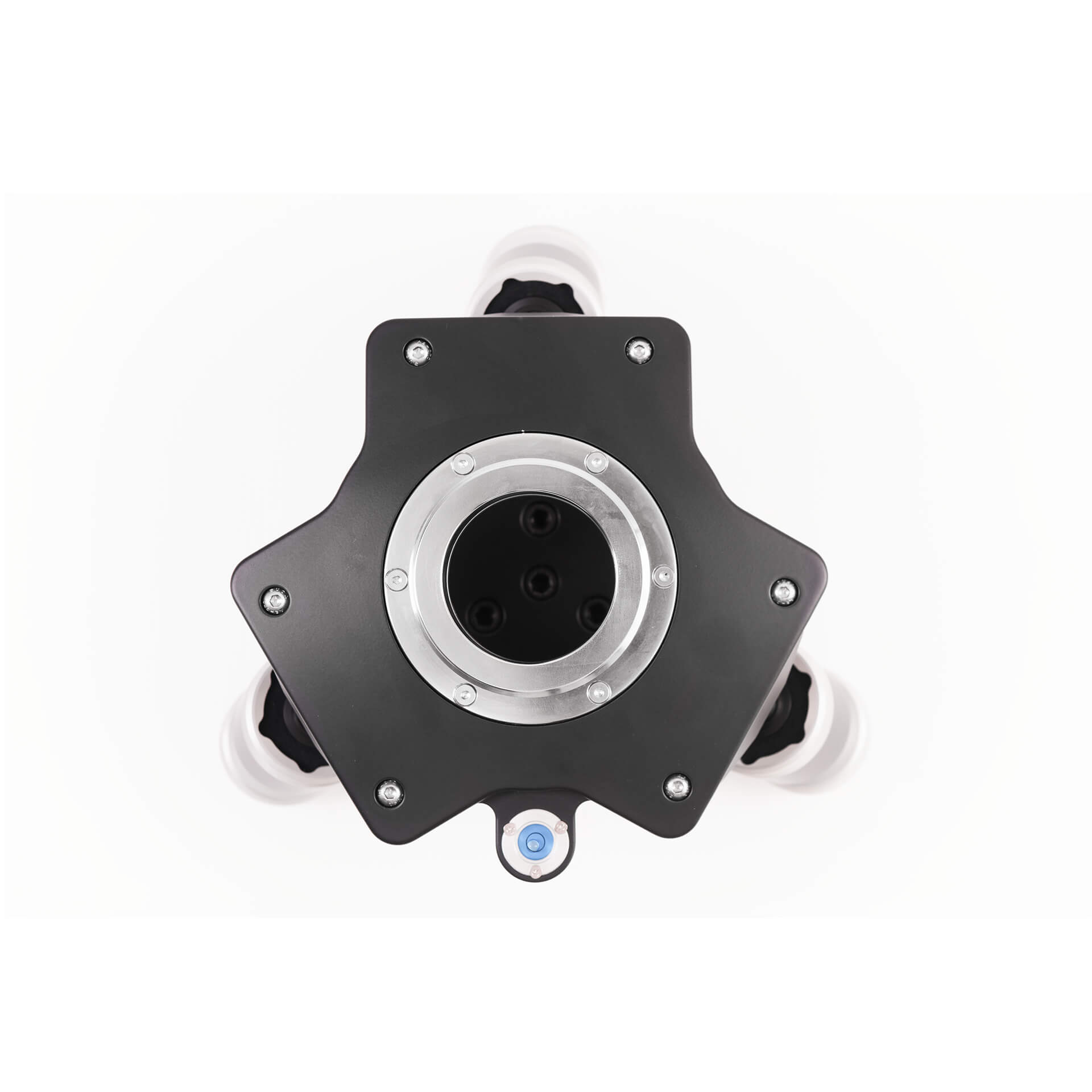

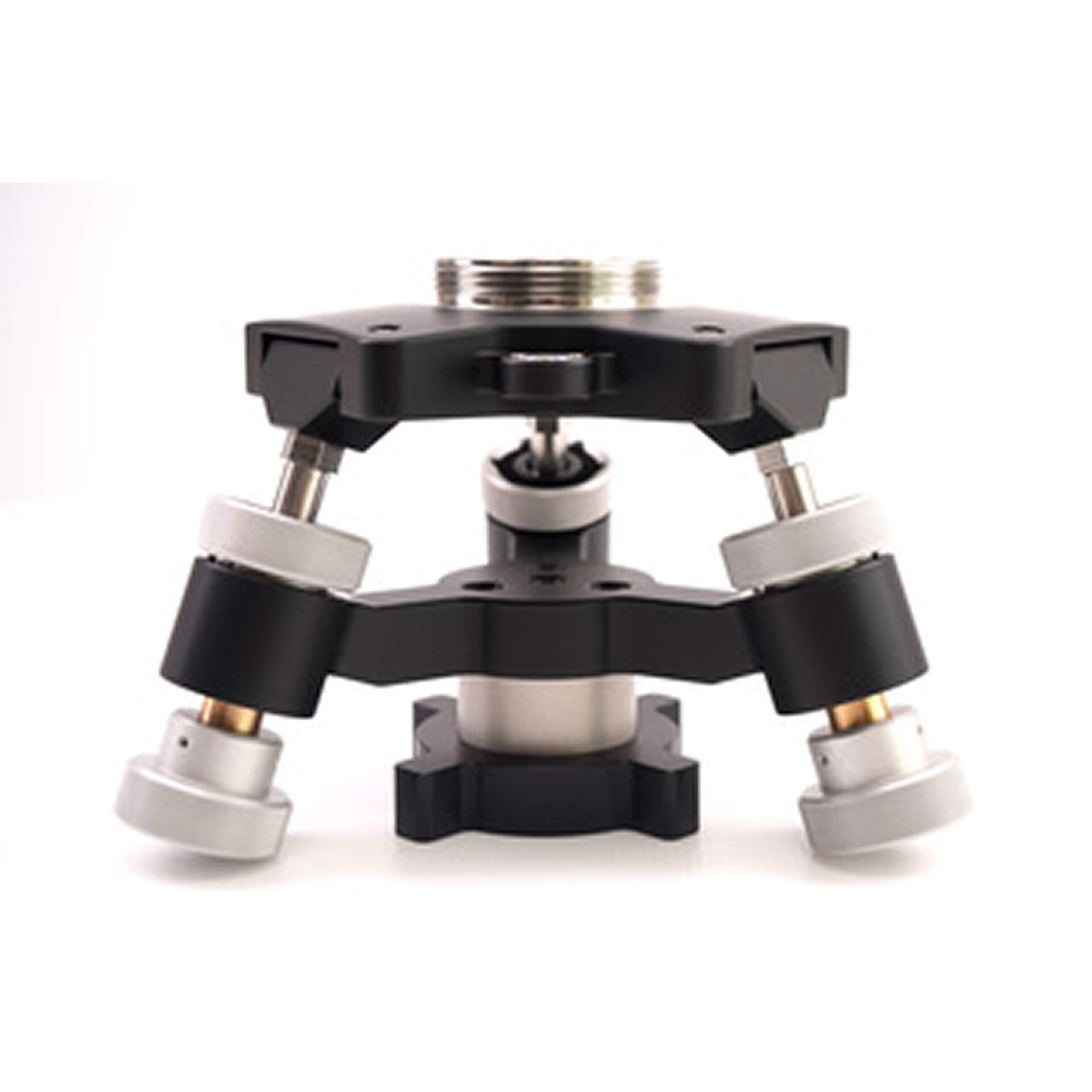

Professional levelling head with a 3.5" thread designed for stable mounting of measuring, optical and scanning instruments. The three-point adjustment system with precision micrometer screws allows for accurate levelling of the device even on uneven surfaces. Ideal for use in surveying, photogrammetry, 3D scanning, metrology, and vision systems.

The body is made of milled aluminium combined with steel support elements, ensuring exceptional rigidity and effective vibration damping. The head can be mounted on measuring platforms, rotary tables or industrial tripods, proving itself both in laboratories and in field conditions.

Technical Specifications

Mounting thread (top)

3,5"

Control (regulation) system

3 micrometer screws

Levelling range

±10°

Body material

Milled aluminium

Base construction (design)

Three-point, independently adjustable

Vibration damping

Yes – support structure

Application

Geodesy, optics, 3D scanners, vision systems

Mobility

Portable product, with a transport bag

Country of production

Poland

Mounting devices on 3.5‘ + 4.5’ thread for Hexagon devices

Body made of milled aluminium

Mounting system – 3 micrometric screws

All parts covered with anodising and powder coating (anodised & powder-coated)

Customisation options

  • Mounting devices on 3.5‘ + 4.5’ thread for Hexagon devices
  • Stability and durability
  • Entirely designed, manufactured and assembled in Poland
  • Possibility to adapt the mounting to the specifications of a specific product
  • Head body made of milled aluminium
  • All parts covered with anodising and powder coating (anodised & powder-coated)

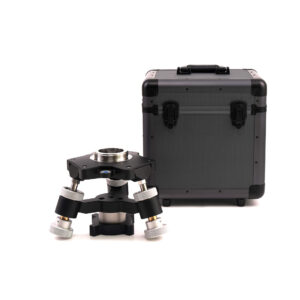

  • Soft carrying bag included
  • Head manufactured and assembled in Poland
  • Three-point adjustment system — three precise micrometer screws allow for smooth and accurate adjustment of the plane within a range of several degrees.
